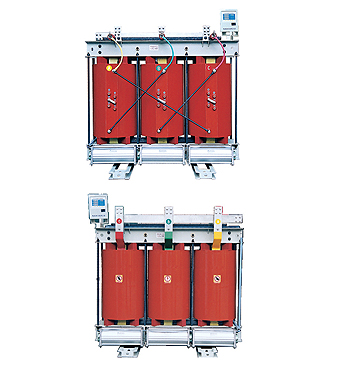

Product Overview
Resin insulation dry-type transformers company is the introduction of foreign advanced technology, self-development of SC9 SCB9 series the SSC10, SCB10, series with filler thin insulation dry type transformer, coil epoxy resin coating, the use of flame retardant, fire, explosion, maintenance-free, pollution-free, small size, can be directly installed in the load center. Drum scientific and rational design and casting process, so that the smaller products of partial discharge, low noise, cooling capacity, long-term operation under forced air conditions can be 140% rated load, and is equipped with intelligent temperature empty instrument, a fault alarm. over-temperature trip, and the black gate sub-functions, and through the RS485 serial interface with the computer connected to the centralized monitoring and control.

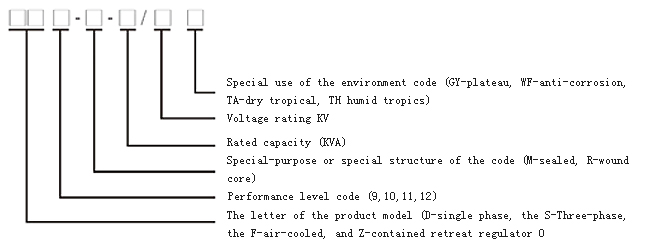

Model and meaning

The main technical parameters

Rated Capacity					Voltage Combination	Link Manner	Loss		No-load Current (%)	Impedance Voltage (%)	Insulation Rating	Weight (kg)
							No-load	Load (120 ° C)
10					High-voltage 10.5 10 6.3 6 Low-voltage 0.4	Dyn22 or Yyno	0.250	0.425	4.5	4	F/F	150
20							0.285	0.730	4.0			190
30							0.315	0.850	3.2			350
50							0.405	1.155	2.8			400
63							0.470	1.380	2.7			460
80							0.515	1.560	2.6			530
100							0.550	1.765	2.4			610
125							0.630	2.055	2.2			670
160							0.710	2.350	2.2			800
200							0.800	2.775	2.0			950
250							0.910	3.020	2.0			1060
315							1.090	3.770	1.8			1200
400							1.200	4.320	1.8			1470
500							1.405	5.270	1.8			1650
630							1.610	6.320	1.6			1920
630							1.560	6.410	1.6	6		1920
800							1.810	7.460	1.6			2310
1000							2.090	8.700	1.4			2720
1250							2.450	10.36	1.4			3050
1600							2.855	12.52	1.4			3760
2000							3.835	15.40	1.2			4170
2500							4.600	18.28	1.2			4830
3150							5.880	23.80	1.0	8		5820
4000							6.800	28.60	1.0			7100
