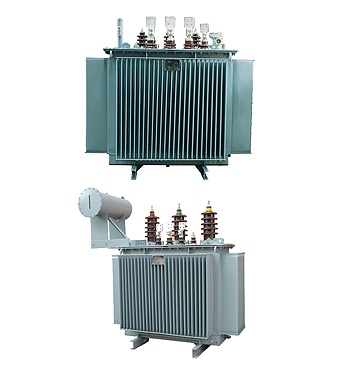

Three-phase oil-immersed distribution transformers, the body of a new type of insulation structure and improve the ability to withstand short circuit; core made ??of high quality cold-rolled silicon steel sheet; high voltage windings are made of high-quality oxygen-free copper wire material, and multi-layer cylindrical structure; the use of fasteners are used special locking.
The product has high efficiency, low loss characteristics, you can save a lot of power consumption and operating costs, significant social benefits, the country to promote high-tech products.

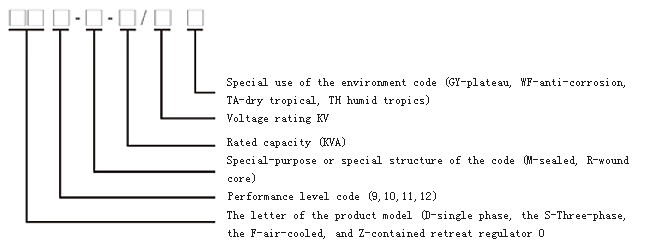

Model and meaning
The main technical parameters
10KV class D9 series oil-immersed distribution transformers technical parameters
|
Rated Capacity |
Voltage combinations (KV) |
Link Manner |
Loss |
No-load Current (%) |
Impedance Voltage (%) |
Weight (kg) |
Dimensions (mm) (L × W × H) |
Gauge Portrait / Landscape |
||||
| High-voltage | Low-voltage | No-load | Load | The body of weight | Heavy oil | Total weight | ||||||
| 5 |
11 10.5 10 6.3 6 |
0.22/ 0.24 |
110 or 116 |
40 | 155 | 4.1 | 3.5 | 60 | 40 | 140 | 540×420×860 | 3550/220 |
| 10 | 60 | 270 | 3.6 | 75 | 40 | 160 | 560×500×900 | 400/300 | ||||
| 16 | 70 | 375 | 3.3 | 90 | 40 | 190 | 590×500×950 | 400/300 | ||||
| 20 | 85 | 440 | 3.1 | 110 | 50 | 215 | 610×500×970 | 400/300 | ||||
| 30 | 105 | 635 | 2.9 | 125 | 50 | 235 | 610×500×1020 | 400/300 | ||||
| 40 | 130 | 785 | 2.6 | 160 | 55 | 280 | 630×520×1050 | 400/300 | ||||
| 50 | 155 | 960 | 2.4 | 185 | 70 | 320 | 640×530×1070 | 400/300 | ||||
| 63 | 185 | 1145 | 2.2 | 200 | 80 | 350 | 660×540×1090 | 400/300 | ||||
| 80 | 205 | 1410 | 2.1 | 250 | 100 | 30 | 690×560×1100 | 400/400 | ||||
| 100 | 245 | 1660 | 2.0 | 305 | 100 | 500 | 710×570×1120 | 400/400 | ||||
| 125 | 290 | 1960 | 1.9 | 380 | 110 | 570 | 740×600×1150 | 400/400 | ||||
| 160 | 370 | 2375 | 1.8 | 440 | 130 | 660 | 790×620×1160 | 400/400 | ||||
