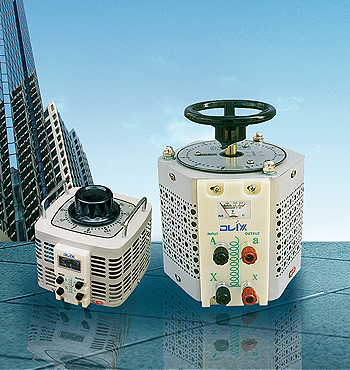

TDGC2, TSGC2, TDGC2J, TSGC2J Series regulator with the Ministry of waveform distortion, small size, light weight, high efficiency, easy to use, reliable performance, long-term operation and so on to achieve voltage regulation, temperature control, dimming, and power controlpurpose.
Scope of application
Widely in the chemical industry, metallurgy, instrumentation, mechanical and electrical manufacturing, light industrial, scientific experiments, utilities, household appliances, temperature adjustment, dimming and power control purposes, is an ideal AC voltage regulator power supply.
The main technical parameters
| Model Specification | Rated capacity | Number of phases | Rated frequency |
Rated output Input voltage |
Rated output The voltage |
Rated output Out of power |
|
TDGC2 -0.2 TDGC2J |
0.2 | 1 | 50 | 220 | 0-250 | 0.8 |
| -0.5 | 0.5 | 2 | ||||
| -1 | 1 | 4 | ||||
| -2 | 2 | 8 | ||||
| -3 | 3 | 12 | ||||
| -5 | 5 | 20 | ||||
| -7 | 7 | 28 | ||||
| -10 | 10 | 40 | ||||
| -15 | 15 | 60 | ||||
| -20 | 20 | 80 | ||||
| -30 | 30 | 120 | ||||
|
TDGC2 -3 TDGC2J |
3 | 3 | 50 | 380 | 0-430 | 4 |
| -6 | 6 | 8 | ||||
| -9 | 9 | 12 | ||||
| -15 | 15 | 20 | ||||
| -20 | 20 | 27 | ||||
| -30 | 30 | 40 |
