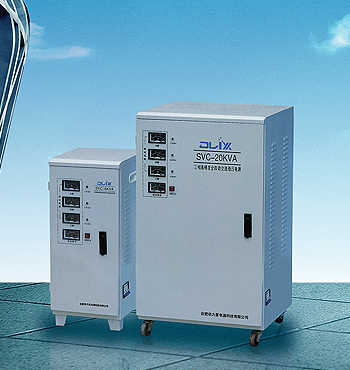

This product is by the three single-phase high-precision automatic AC voltage stabilizer to take the Y connection is made, wide input voltage range, high efficiency, with over (under) pressure, over-current protection, high precision voltage regulator, input and outputvoltage waveform, the products are small, light weight.
Scope of application
Power supply for homes, factories, schools, offices, shops, scientific experiments, precision instruments such as three-phase electrical equipment, facilities, long-running.
The main technical parameters
| Input voltage | 320V~430V |
| Output voltage | 380V±4％ |
| Frequency | 50Hz/60Hz |
| Adjust the time | <1S (when 10% of the input voltage changes) |
| Maximum rated output current |
1.5KVA 2A、3KVA 4A、4.5KVA 6A、6KVA 8A、9KVA 12A、15KVA 20A、20KVA 28A、 30KVA 40A、45KVA 60A、60KVA 80A、 90KVA 120A、 |
| Ambient temperature | -5°C~±40°C |
| Temperature rise | ＜60％ |
| The relative temperature | Less than 90% |
| Waveform distortion | No additional distortion |
| Efficiency | ＞90％ |
| Pressure | Line with ministerial standards |
