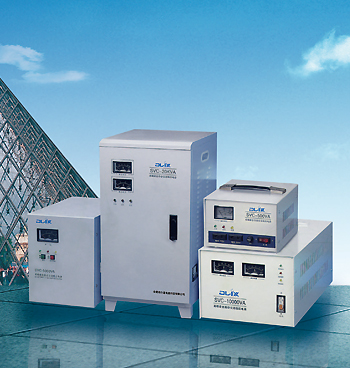

Of linear integrated circuits, control systems, automatic voltage regulator to control the servo motor drive the contact voltage regulator, and set the delay, overvoltage, undervoltage, and overcurrent protection features to ensure that the regulator safe power supply: This product is an efficientthe same input and output voltage waveform, the output voltage is stable and reliable, continuous work.
Scope of application
Applies to the family, factory schools, offices, shops, scientific experiments, precision instruments and other electrical equipment, facilities, supply, office equipment, test equipment, communication systems, industrial equipment, medical equipment, household appliances.
The main technical parameters
| Model | TND0.5KVA-5KVA | TND10KVA-20KVA | |
| Input voltage range | 150V-250V（130V-260V） | ||
| Output voltage | Regulation accuracy | 220±3％，110±3％ | 220±3％ |
| Undervoltage protection | 184V±4V(According to user settings, general settings) | ||
| Overvoltage protection | 246V±4V | ||
| Efficiency | ＞90％ | ||
| Regulator speed | ＜1S(When 10% of the input voltage changes) | ||
| Temperature rise | ＜60S(Full load conditions) | ||
| Frequency | 50Hz/60Hz | ||
| Ambient temperature, the relative temperature | -5 ° C to ± 40 ° C less than 90% | ||
| Waveform distortion | No additional distortion | ||
| Maximum rated output current |
0.5KVA 2A、1KVA 4A、1.5KVA 6A、2KVA 8A、3KVA 12A、5KVA 20A、10KVA 40A、15KVA 60A、20KVA 80A、30KVA 120A、40KVA 160A、50KVA 200A、 |
||
| Pressure | Line with ministerial standards | ||
