System hardware:
Host of intelligent systems, fire emergency guide marker lamps, the light of the fire emergency safety exit signs, fire emergency floor lights, fire emergency
Direction marker lamps, set of computer hardware and software technology, network technology, communication technology, printers and other modern high-tech as one of the new product.
Basic principle:
Host system software and protocol communication bus can be attached to the 350 branch repeater controller, repeater controller can be attached in each slip
350 terminal lamps, extend communication distance of 1100 meters, slip relay controller can be under the same pick slip relay controller to achieve the number of terminal lamps extensions
Extension and communication distance.
The main function
1，Display system structure, system time, control command button, the results of the implementation, failure alarm, inspection results, emergency, work logs
2, control of lighting direction, self-test, emergency switch, shiny, intelligent escape
3，Print fault location, time of occurrence, fault type, the log
4, intelligent remote query and control fire linkage, the RS232/RS485 serial interface
5, the windows operating software, LCD display, intuitive operation, convenient, fast
6, the black box recording function, the intelligent automatic storage of more than 100,000 systems running a variety of information
The main technical parameters table
| Specifications Model | HL-BUS-500W | HL-BUS-1000W | HL-BUS-2000W | HL-BUS-3000W |
| Input voltage | AC220V±10% 50HZ | |||
| Output voltage | AC220V | |||
| Loop single card number | 1 ≈ 10 | |||
| Loop single card specifications | HL-A single card single branch point 63 | |||
| HL-B, a single card single branch point 126 | ||||
| HL-C single card single branch point 189 | ||||
| HL-D single card single slip 252 points | ||||
| Mainframe capacity | The maximum 2520 points | |||
| Communication interface | RS232/RS485 interface 4 can be connected to the FAS / BAS / CRT | |||
| 10/100M Ethernet interface 1 | ||||
| The power distribution module | RS485, fiber optic interface (optional) Monitor the number of power distribution module Up to 38 | |||
| Networking capability | Up to 30 host networking | |||
| Print method | The Chinese mini-printer, the text output | |||
| Ambient temperature | Temperature; ≈ 45 ℃ -10 ℃ relative humidity: ≤ RH 95% (40 ± 20 ° C to 0） | |||
| Emergency time | GB: 90min (time optional) | |||
| Charging time | ≤24h | |||

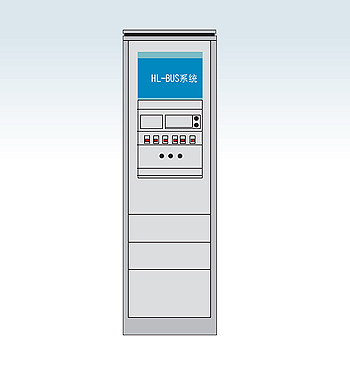

| Dimensions | Main cabinet 800mm × 600mm × 2200mm | |||
