● allocation of power modules are arranged in the end of the lamp next to the power distribution room or shaft;
● auto-complete conversion of the main power and backup power;
● allocation controller main power (backup power) from the centralized power;
● If you have special requirements, can be increased to take the site emergency lighting distribution mains.
Technical parameters
| Name | Model | Specification | Power | Input voltage | Output voltage |
| Distribution of electrical module | HL-FP | HL-A | 180W | AC220V | DC36V |
| HL-B | 360W | ||||
| HL-C | 720W | ||||
| HL-D | 1440W |
| Installation | Degree of protection | Operating environment | |
| Wall-mounted | Floor type | IP30 |
Temperature-10°Cto+45 ° C Relativehumidity ≤ 90% |

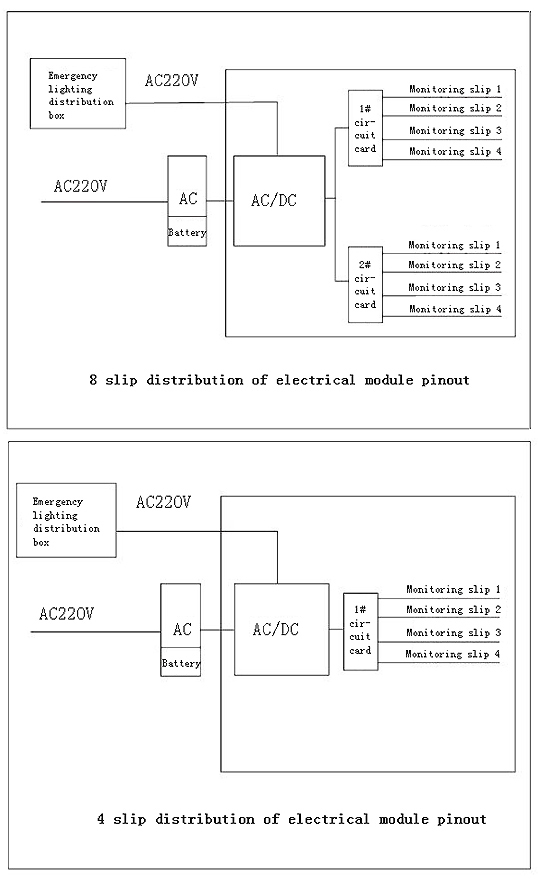

Pinout schematic
