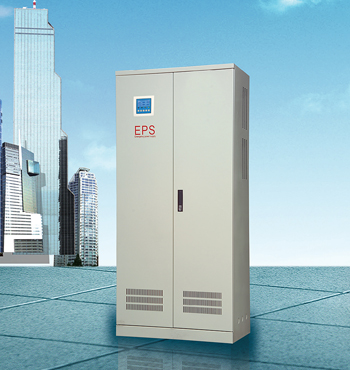

Floor, hanging, three embedded
Product Principle
HL / F on-line dedicated emergency power supply in succession on the basis of the existing fire emergency power technology, in accordance with GB16806-2006 national standard fire control system developed out of a new product of the zero-time switch, line fire emergency power completelyto solve the high pressure sodium lamps, halogen lamps, and special electrical installations on the zero-switching power supply requirements, and is now an important place, such as; hospitals, banks, tunnels, transportation, government agencies and other important places universal access.
Advantages
● simple design, construction;
● lower total cost saving investment;
● long life, more than 20 years of the life of the host;
● Maintenance-free batteries can be recycled 300-500 times;
● Simple manage automatic instant switch, or unattended;
● maintain a stable, reliable, easy to maintain;
Technical parameters
| Model Specification | HL-YJF Series | HL-YJSF Series | |
|
import |
Voltage | 176-276VAC | 304-456VAC |
| Number of phases | Single-phase + G | Three-phase four-wire + G | |
| Frequency | 50HZ±10% | ||
| Output | Voltage | Normal time, mains voltage, emergency 220VAC ± 3% | Normal synchronization with the mains, an emergency 380VAC ± 3% |
| Waveform | Sine wave | ||
| Frequency | Normal state is synchronized with the mains state of emergency 50 ± 0.1HZ | ||
| The output branch | 3-way (according to user needs expansion) | 1-way (according to user needs expansion) | |
| Battery | Battery in the form | 12VDC sealed free water | |
| Standard voltage | 36VDC（0.5K）、96VDC(1-2K)、192VDC(3K-10K) | 384VDC (according to user needs） | |
| Emergency and standby time | 90min (demand may be) | ||
| Conversion time | 0ms or ≤ 2.5ms | ||
| Protection function | Overvoltage, undervoltage, overload, short circuit protection | ||
| Communication | RS232 / RS485 communication protocol modbus or according to customer requirements; the RMON card SNMP (optional) | ||
| Overload | 120% working properly, 150% 1min | ||
| Show | LED, LCD (touch screen) .. | ||
| Efficiency | ≥90% | ||
| Work environment | Noise (1m away) | ≤45dB | ≤60dB |
| Humidity | ≤90% | ||
| Temperature | -20℃-45℃ | ||
| Altitude | ≤2000m | ||
| Size / Weight | The table below | ||
Features
● anti-overload capability, suitable for a variety of capacitive, inductive load;
● long life, more than 20 years of the life of the host;
● adaptable, and can be used for a variety of adverse work environment;
● self-monitoring function;LED LCD in English and Chinese display and an audible alarm, work status at a glance;
● With the overvoltage, undervoltage, overcurrent, short circuit protection function;Intelligent battery management functions can all float automatically converted to extend battery life;
● automatic monitoring of battery status, battery save to put the automatic protection;
● fire linkage, via RS232 or RS485 interface, which enables remote monitoring;
Online series EPS single phase configuration List
| Number of phases | Model Specification |
Output power (KW) |
Emergency time (Min) |
Dimensions (mm) W × D × H |
Weight (kg) | Output circuit | Installation |
| Single-phase | HL-YJ-0.5KW | 0.5 | 60 | 600×220×800 | 60 | 3 | Embedded |
| 90 | 600×220×800 | 75 | |||||
| HL-YJ-1KW | 1.0 | 60 | 600×220×1100 | 80 | 3 |
Embedded Hanging Floor type |
|
| 90 | 600×220×1100 | 130 | |||||
| HL-YJ-1.5KW | 1.5 | 60 | 600×220×1300 | 150 | 3 | ||
| 90 | 600×220×1300 | 210 | |||||
| HL-YJ-2KW | 2.0 | 60 | 600×220×1300 | 215 | 3 | ||
| 90 | 600×220×1300 | 230 | |||||
| HL-YJ-3KW | 3.0 | 60 | 750×410×1300 | 245 | 3 | Floor type | |
| 90 | 750×410×1300 | 365 | |||||
| HL-YJ-4KW | 4.0 | 60 | 750×410×1600 | 325 | 3 | ||
| 90 | 750×410×1600 | 460 | |||||
| HL-YJ-5KW | 5.0 | 60 | 750×410×1600 | 415 | 3 | ||
| 90 | 750×410×1600 | 600 | |||||
| HL-YJ-6KW | 6.0 | 60 | 750×410×1750 | 550 | 3 | ||
| 90 | 750×410×1750 | 750 | |||||
| HL-YJ-7KW | 7.0 | 60 | 800×600×2200 | 660 | 3 | ||
| 90 | 800×600×2200 | 910 | |||||
| HL-YJ-8KW | 8.0 | 60 | 800×600×2200 | 760 | 3 | ||
| 90 | 800×600×2200 | 1000 | |||||
| HL-YJ-9KW | 9.0 | 60 | 800×600×2200 | 850 | 3 | ||
| 90 | 800×600×2200 | 960 | |||||
| HL-YJ-10KW | 10 | 60 | 800×600×2200 | 1200 | 3 | ||
| 90 | 800×600×2200 | ||||||
| Note; data are subject to change without prior notice, subject to the latest standards. Battery cabinet size to 800 × 800 × 2200mm. | |||||||
Scope of application
High pressure sodium lamps, halogen lamps, the rectifier fluorescent or important place: hospital, bank, tunnels, transportation, government agencies, schools, shopping malls, hotels, exhibition and other uninterruptible power supply in the second road.
Size range
0.5KW-500KW
Online Series EPS three-phase configuration List
| Number of phases | Model Specification |
Output power (KW) |
Emergency time (Min) |
Dimensions (mm) W × D × H |
Weight (kg) | Output circuit | Installation |
| Three-phase | HL-YJS-2.2KW | 2.2 |
60, 90, 120 (according to Required but with) |
600×300×1400 | 160 |
3 loop or By drawing design Configuration |
Floor type |
| HL-YJS-3.7KW | 3.7 | 750×410×1600 | 340 | ||||
| HL-YJS-5.5KW | 5.5 | 750×410×1600 | 700 | ||||
| HL-YJS-7.5KW | 7.5 | 800×600×2200 | 800 | ||||
| HL-YJS-11KW | 11 | 800×600×2200 | 950 | ||||
| HL-YJS-15KW | 15 | 800×600×2200 | 1280 | ||||
| HL-YJS-18.5KW | 18.5 | 800×600×2200 | 1300 | ||||
| HL-YJS-22KW | 22 | 800×600×2200 | 1740 | ||||
| HL-YJS-30KW | 30 | 800×600×2200 | 1800 | ||||
| HL-YJS-37KW | 37 | 800×600×2200 | 2420 | ||||
| HL-YJS-45KW | 45 | 800×600×2200 | 3350 | ||||
| HL-YJS-55KW | 55 | 800×800×2200 | 4960 | ||||
| HL-YJS-55KW | 75 | 800×800×2200 | 6570 | ||||
| HL-YJS-93KW | 93 | 800×800×2200 | 6600 | ||||
| HL-YJS-110KW | 110 | 1000×800×2200 | 6700 | ||||
| HL-YJS132KW | 132 | 1000×800×2200 | 8300 | ||||
| HL-YJS-160KW | 160 | 1000×800×2200 | 9800 | ||||
| HL-YJS-180KW | 180 | 1000×800×2200 | 11200 | ||||
| HL-YJS-200KW | 200 | 1000×800×2200 | 13000 | ||||
| Note; data are subject to change without prior notice, subject to the latest standards. Battery cabinet size to 800 × 800 × 2200mm. | |||||||
