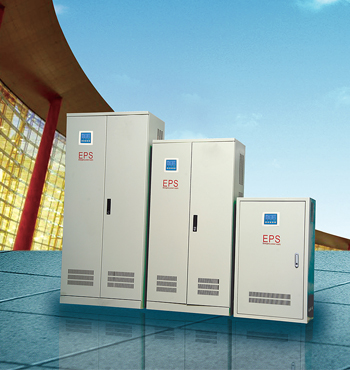

Floor type
Product Principle
HL-YJS / P series power variable frequency three-phase emergency power supply, a variable-frequency three-phase emergency power for the motor only all the way to power the fire safety facilities, or a load to resolve the emergency power of the motor and its startup processthe impact of power supply equipment. Such as pumps, fans, elevators
The motor of the motor or other device.
When the mains is normal, the municipal electric intelligent charging device to power the load after each vote, while the charger to the battery backup. Inverter signal when the power fails, or more than 25% of normal voltage, provided by the controller to start the inverter power supply, at the same time, mutual investment and the device will immediately switching to the power inverter output to continue to provide the AC sine wave, when the City voltage to normal, emergency power will be restored to the grid.
Advantages
● Modular design, easy construction;
● comprehensive low cost, low investment;
● long life, more than 20 years of the life of the host;
● Maintenance-free batteries can be recycled 300-500 times;
● Simple manage automatic instant switch can be unattended;
● maintain a stable, reliable, easy to maintain;
Technical parameters
| Model Specification | HL-YJS / P series | ||
|
import |
Voltage | 380VAC±20% | |
| Number of phases | Three-phase four-wire + PE | ||
| Frequency | 50HZ±10% | ||
| Output | Voltage | Three-phase 0-380V (adjustable) | |
| Waveform | SPWM wave | ||
| Frequency | Normal operation of the 0-50HZ (frequency conversion, frequency adjustable) | ||
| The output branch | 1 or can be expanded | ||
| Battery | Battery in the form | 12VDC sealed free water | |
| Standard voltage | 480VDC | ||
| Emergency and standby time | 90min (demand may be) | ||
| Conversion time | 0ms or ≤ 2.5ms | ||
| Protection function | Overvoltage, undervoltage, overload, short circuit protection | ||
| Communication | RS232 / RS485 communication protocol modbus or according to customer requirements; the RMON card SNMP (optional) | ||
| Overload | 120% working properly, 150% 1min | ||
| Show | LED, LCD (touch screen) .. | ||
| Efficiency | ≥90% | ||
| Work environment | Noise (1m away) | ≤45dB | ≤60dB |
| Humidity | ≤90% | ||
| Temperature | -20℃-45℃ | ||
| Altitude | ≤2000m | ||
| Size / Weight | The table below | ||
Features
● anti-overload, for a variety of motor load;
● long life, more than 20 years of the life of the host;
● adaptable, and can be used for a variety of adverse work environment;
● self-monitoring function;LED LCD in English and Chinese display and an audible alarm, work status at a glance;
● With the overvoltage, undervoltage, overcurrent, short circuit protection function;Intelligent battery management functions can all float automatically converted to extend battery life;
● automatic monitoring of battery status, battery save to put the automatic protection;
● fire linkage, via RS232 or RS485 interface, which enables remote monitoring;
Scope of application
High-rise buildings, elevators, central air conditioning, fire pumps, exhaust fan, fire and industrial aspects of power with
HL-YJS / P series power inverter-phase configurations List
| Number of phases | Model Specification |
Output power (KW) |
Emergency time (Min) |
Dimensions (mm) W × D × H |
Weight (kg) | Output circuit | Installation |
| Three-phase | HL-YJS/P-2.2KW | 2.2 |
60, 90, 120 (according to Required but with) |
600×300×1400 | 160 |
3 loop or By drawing design Configuration |
Floor type |
| HL-YJS/P-3.7KW | 3.7 | 750×410×1600 | 340 | ||||
| HL-YJS/P-5.5KW | 5.5 | 750×410×1600 | 700 | ||||
| HL-YJS/P-7.5KW | 7.5 | 800×600×2200 | 800 | ||||
| HL-YJS/P-11KW | 11 | 800×600×2200 | 950 | ||||
| HL-YJS/P-15KW | 15 | 800×600×2200 | 1280 | ||||
|
HL-YJS/P-18.5KW |
18.5 | 800×600×2200 | 1300 | ||||
| HL-YJS/P-22KW | 22 | 800×600×2200 | 1740 | ||||
| HL-YJS/P-30KW | 30 | 800×600×2200 | 1800 | ||||
|
HL-YJS/P-37KW |
37 | 800×600×2200 | 2420 | ||||
| HL-YJS/P-45KW | 45 | 800×600×2200 | 3350 | ||||
| HL-YJS/P-55KW | 55 | 800×800×2200 | 4960 | ||||
| HL-YJS/P-75KW | 75 | 800×800×2200 | 6570 | ||||
| HL-YJS/P-93KW | 93 | 800×800×2200 | 6600 | ||||
| HL-YJS/P-110KW | 110 | 1000×800×2200 | 6700 | ||||
| HL-YJS/P132KW | 132 | 1000×800×2200 | 8300 | ||||
| HL-YJS/P-160KW | 160 | 1000×800×2200 | 9800 | ||||
| HL-YJS/P-180KW | 180 | 1000×800×2200 | 11200 | ||||
| HL-YJS/P-200KW | 200 | 1000×800×2200 | 13000 | ||||
| Note; data are subject to change without prior notice, subject to the latest standards. Battery cabinet size to 800 × 800 × 2200mm. | |||||||
